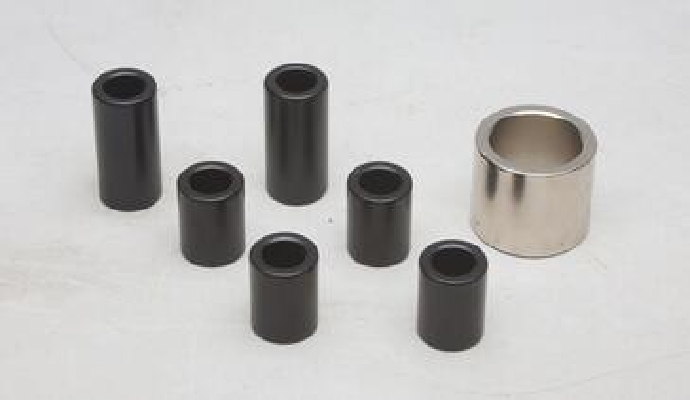

Radial magnetic multipole

The radial magnetic flux density multipole surface developed by our company, has better performance than the traditional tile shaped magnetic steel assembly, magnetic circuit design and the design of magnetic radiation ring are completely different. The radiation ring surface magnetic field distribution of a saddle shape multipole magnetic surface magnetic field distribution developed by our company is the sine wave, more conducive to the design of the motor.

The surface magnetic field distribution of radial multi pole magnetic ring:

I

Eight samples of magnetization

38SH powders D26*D18*20 multipole magnetic ring and magnetic tile

Performance comparison:

project

1.

2

Surface magnetic flux distribution

harmonic

Trapezoidal wave

Maximum magnetic pole (Gs)

Five thousand and four hundred

Four thousand and four hundred

Ring (W) *2h 140 degrees of surface flux loss (mean)

4.3%

6.6%

Ring (W) *2h 160 degrees of surface flux loss (mean)

8.1%

13.1%
